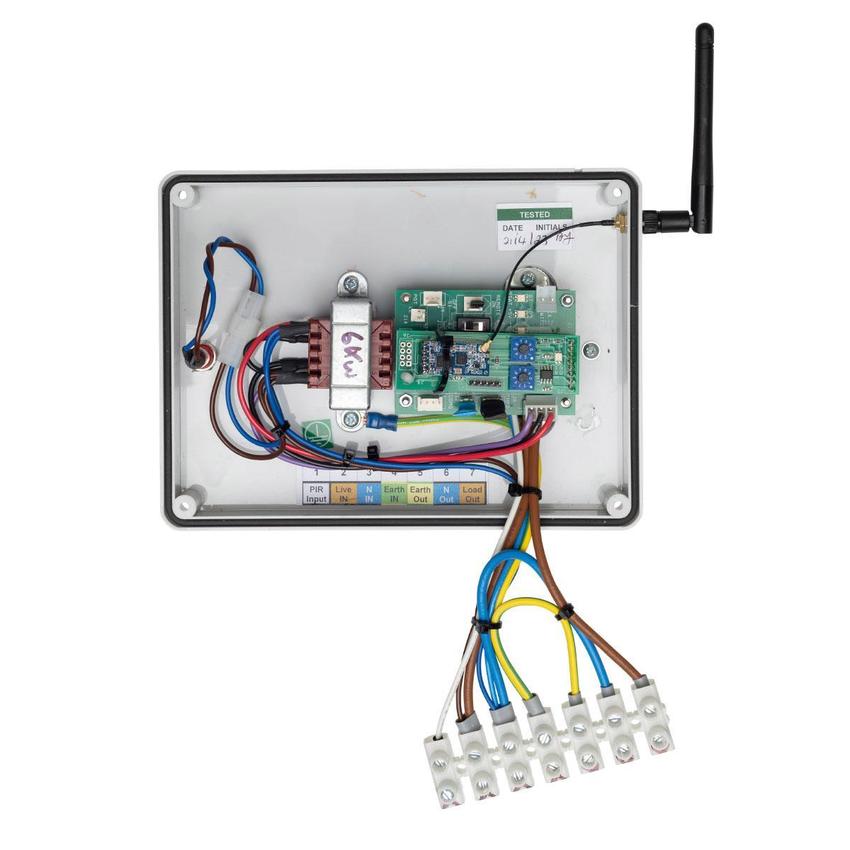

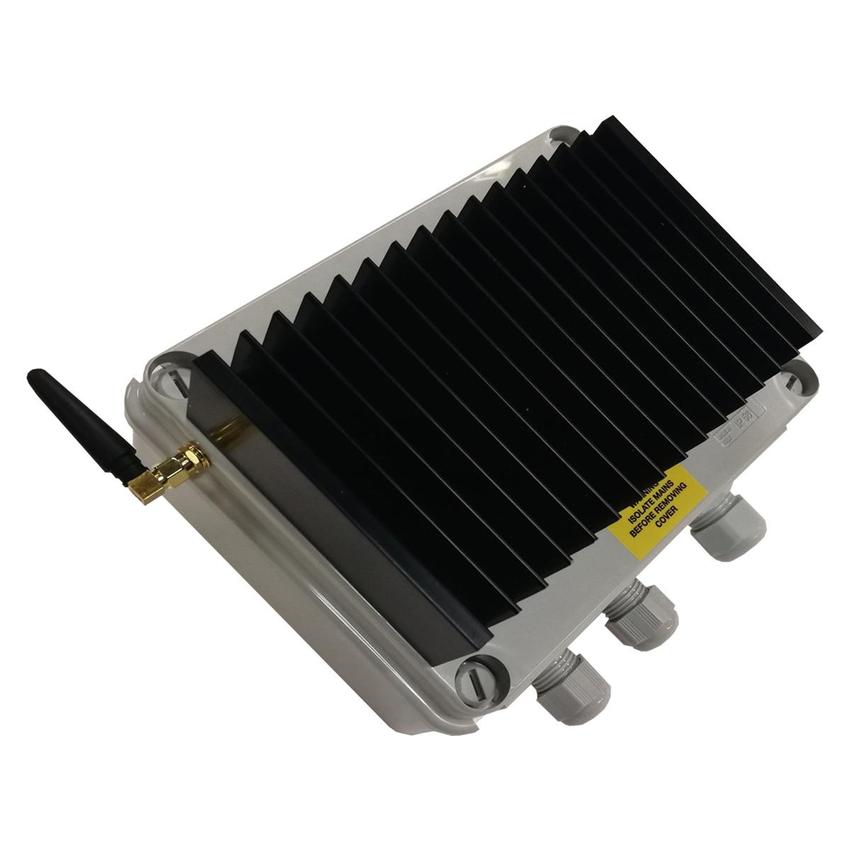

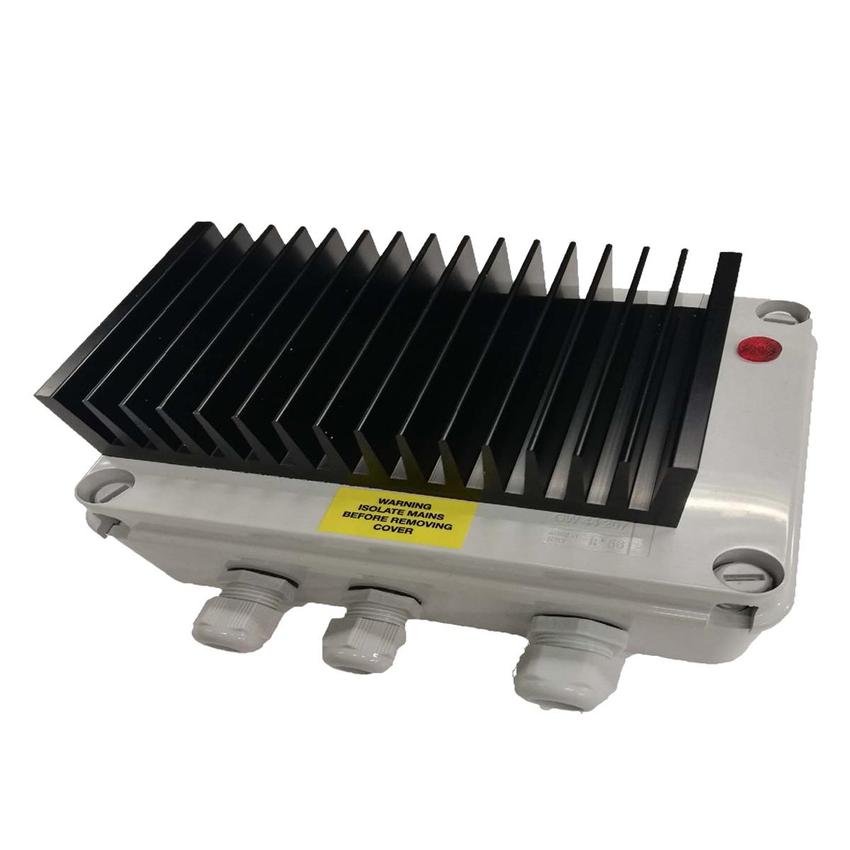

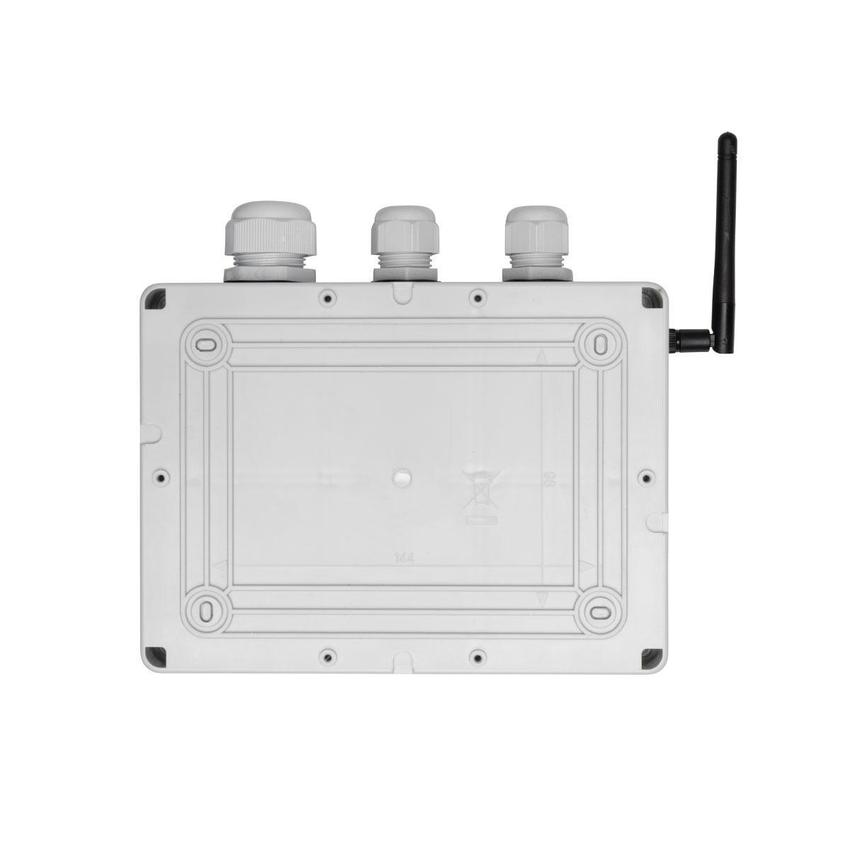

The 9kW Remote Heater controller is a wireless RF receiver which controls the power to infrared heaters up to a load capacity of 9kW. This device is paired with the 3 zone remote Master Transmitter. Any number of these devices can be in a zone as long as they are with 100 meter transmit range. the heaters can then be controlled in any one of the three zones.
This device is compatible with the wall mounted 3 Zone wireless transmitter or the portable hand held version.
For example: A simple solution for a 100 square meter industrial space might be to install three Shadow 4.5kW industrial heaters. Two 4.5kW heaters would be connected through a 9kW receiver and placed into the three different zones. Each heater pair could be switch on independantly and could be set at different heat levels to give heat to the areas that are being used.
| Voltage (V) | 220 - 240V Single phase |
|---|---|
| Weight (Kg) | 2.5 Kg |
| Ingress Protection | IP56 |
| Warranty | 1 Year |
| Additional Info | Range 70-100 meters Long Antenna 30-40 Meters short Antenna |
| Product Depth (cm) | 14 |
| Product Height (cm) | 24 |
| Product Width (cm) | 20 |
