Expandable heating 3 zone control system.

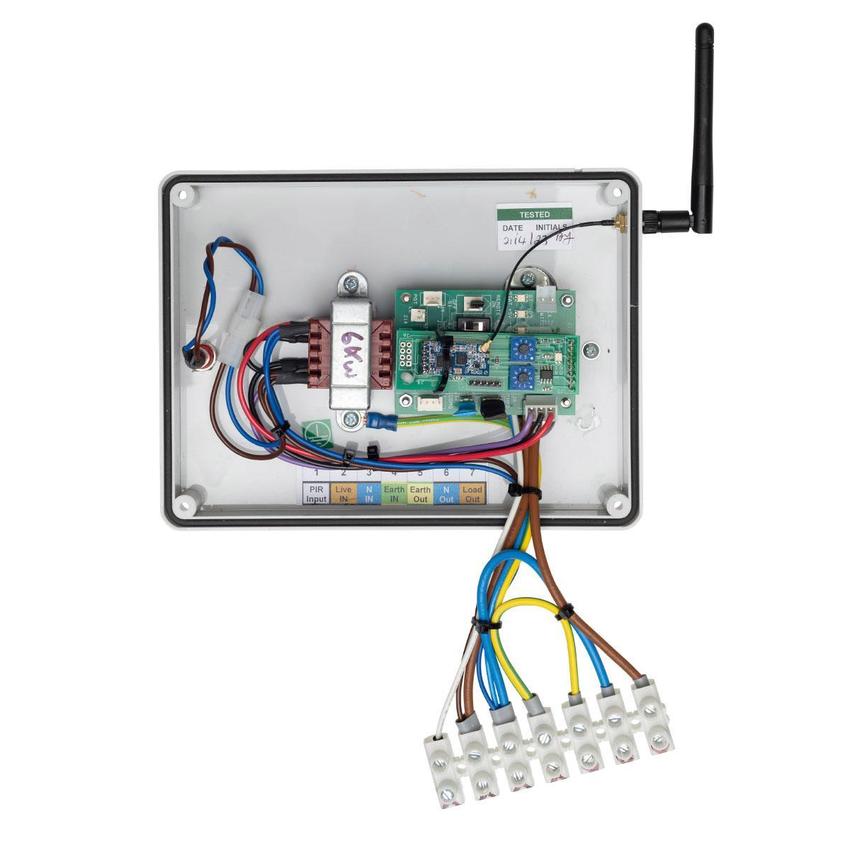

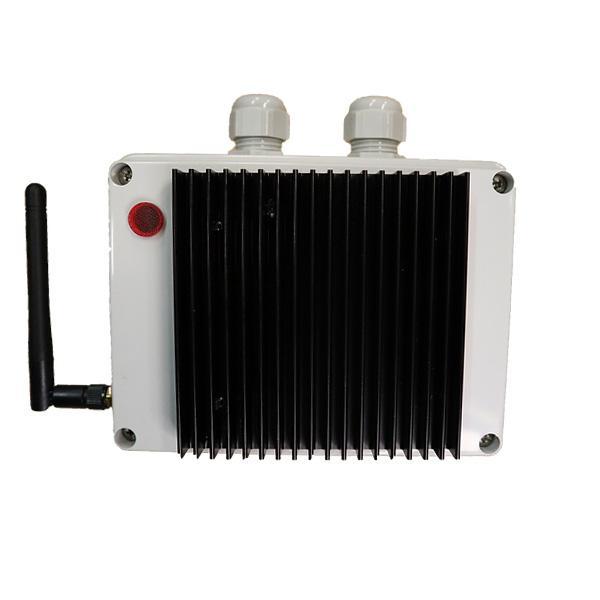

3kW Remote Heater controller (receiver)
The 3kW Remote Heater controller is a wireless RF receiver which controls the power to infrared heaters up to a load capacity of 3kW. This device is paired with the 3 zone remote Master Transmitter. Any number of these devices can be in a zone as long as they are with 100 meter transmit range. the heaters can then be controlled in any one of the three zones.
This device is compatible with the wall mounted 3 Zone wireless transmitter or the portable hand held version.
Example installation
For example: A simple solution for a 100 square meter industrial space might be to install three Shadow 3kW industrial heaters. Each one would be connected through a 3kW receiver and placed into the three different zones. Each heater could be switch on independently and could be set at different heat levels to give heat to the areas that are being used.
Please be advised that current electical advise is that a D32 MCB breaker should be used for all RF controller installs
