Shadow 9kW and 12kW Industrial Heater Packs - 3 Phase Only
The Shadow 9kW and 12kW Industrial Heater Packs (3 Phase
Only) have been expertly engineered to provide everything
you need for a high-performance industrial heating
solution. Combining advanced infrared heater technology
with intelligent multi-zone control, these packs deliver
instant, targeted heat without wasted energy.
Designed specifically for large industrial environments
with 3-phase electrical supply, this system allows you to
heat occupied areas within large spaces, keeping energy
costs low while maintaining comfort.
Important:This system is 3 phase only and must be
installed on a compatible industrial electrical supply.

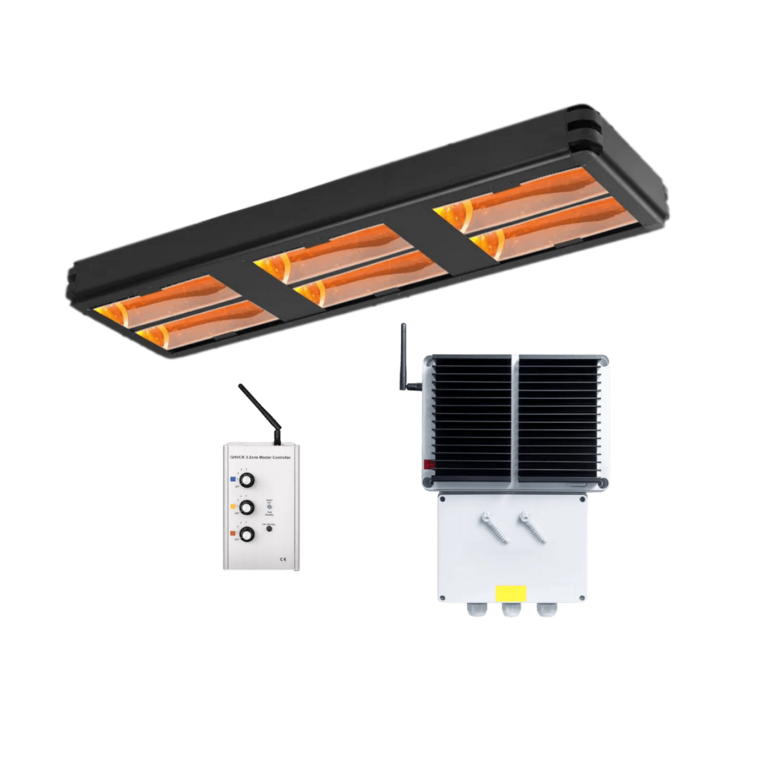

Complete Industrial Heating Pack
This industrial heater pack includes everything required
for a fully integrated heating system:
1 x Shadow 9kW or 12kW Industrial Infrared Heater

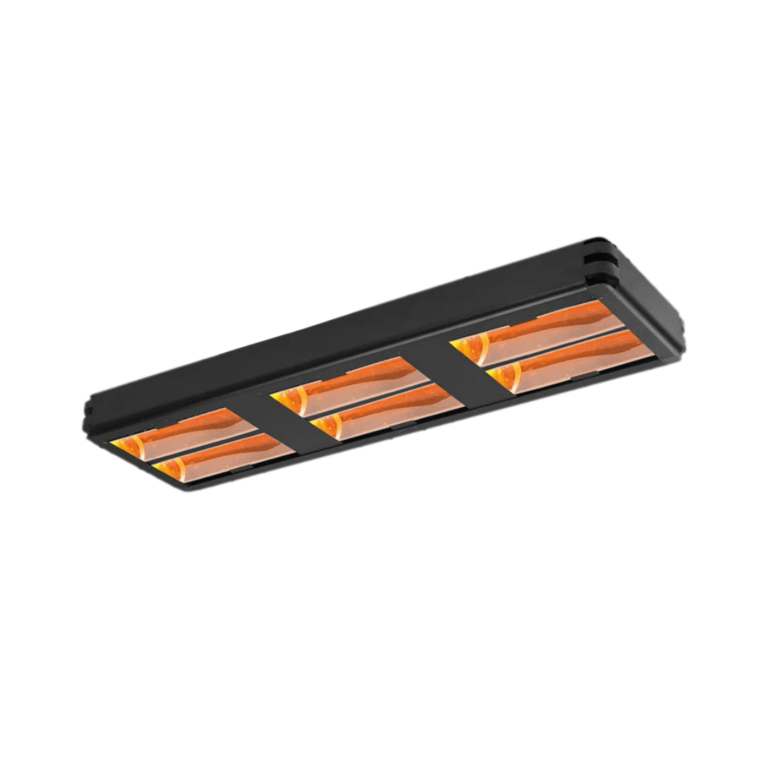

The Shadow 9kW or 12kW Industrial Infrared Heater delivers
powerful heat almost instantly, effectively warming people
and objects within its coverage area, making it ideal for
large open spaces where rapid heating is essential.
- Power options: 9kW or 12kW with 6 short-wave infrared
lamps
- Electrical supply: 3-phase, 230-415V (approx. 13-18A
per phase)
- Coverage area: Heats up to ~50-55m?
- IP rating: IP65, suitable for indoor and semi-outdoor
use

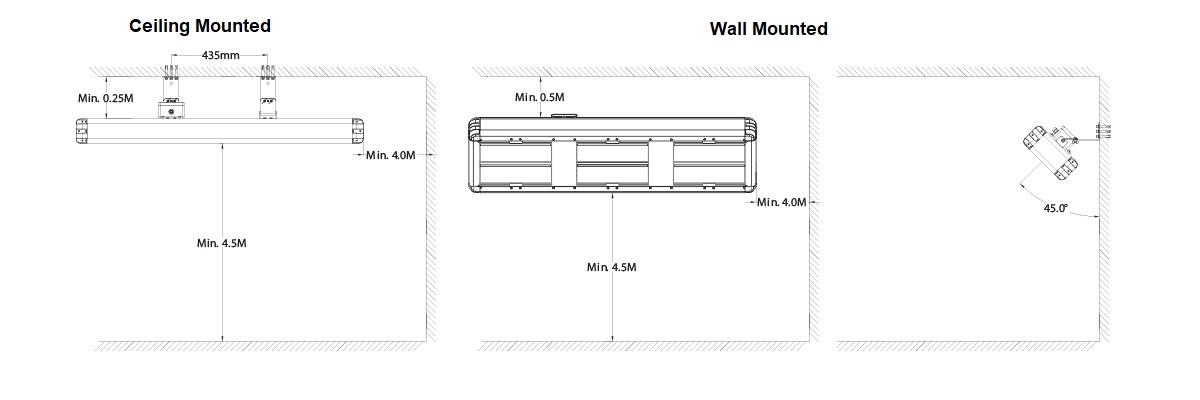

- Mounting: Wall or ceiling installation (min. height
~4-4.5m)

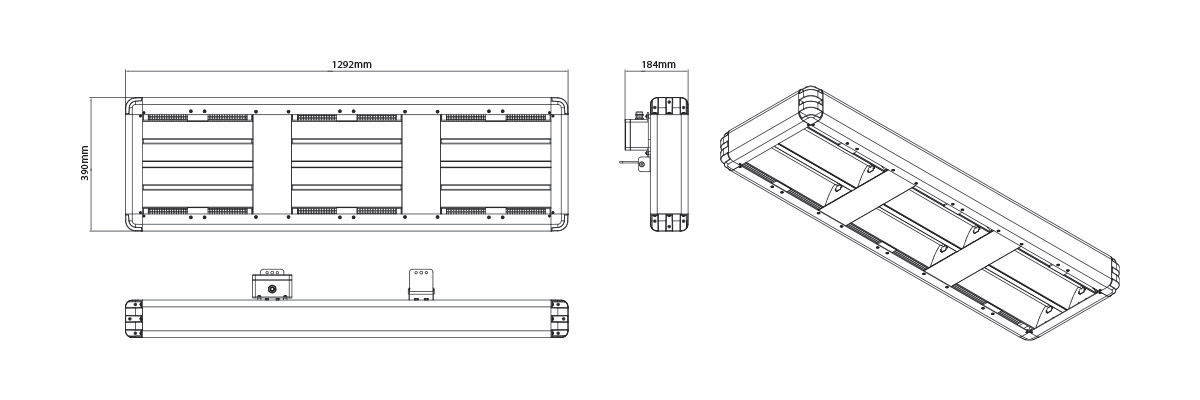

- Build: 14kg, compact industrial design (?129cm x 39cm x
11cm)

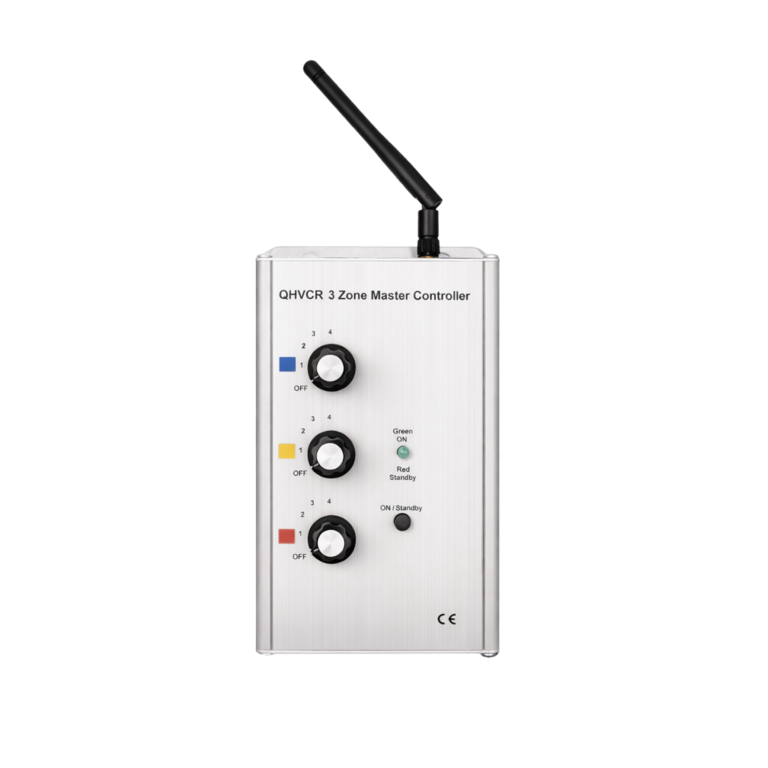

1 x 3 Zone Master Controller (Wall Mounted
Transmitter)
- 3 dials for independent 3 channel control.
- Transmission over 10 different frequencies for use with
multiple QHVCR's.
- 5 variable power settings 1 - 5.
- RF 433mHz.
- Range 70 - 100 meters Long Antenna * note: Line of
sight, obstacles may reduce the range.
- 30 - 40 meters Short Antenna. (All controllers within
range can be controlled.)
- Dimensions H 165mm x W 105mm x D 75mm

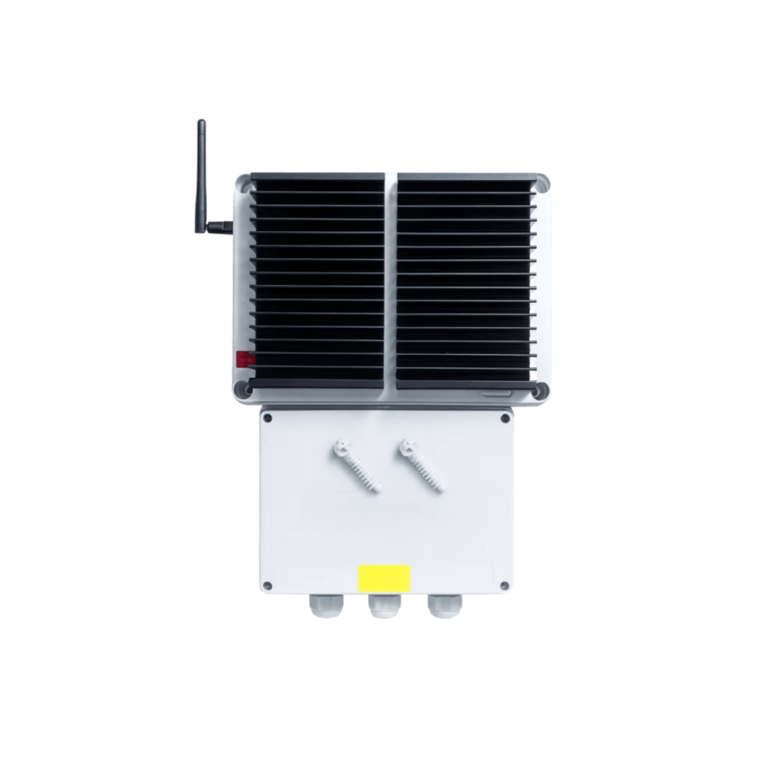

1 x 12kW Remote Variable Heater Controller (Receiver) -
3 Phase Only (for zoned wireless control)
- Supply voltage: 3 phase 415V AC 50Hz
- Max Load Capacity: 12 kW
- Transmission 433mHz
- IP56
- Dimensions: 380mm x 260mm x 140mm
- Weight: 3.5kg
These components are designed to work seamlessly together,
delivering a reliable and scalable heating solution for
large spaces.
Please note: This pack allows control of one zone only. To
manage additional zones, extra receivers will need to be
purchased.
