Shadow Crystal 600W Infrared Glass Panel Heater - White

Waterproof Waterproof
Waterproof

Waterproof


This item is designed to be fitted and operated outside.

This product is IPx4 – Splashproof

Hanging/Ceiling Mountable Hanging/Ceiling Mountable
Hanging/Ceiling Mountable

Hanging/Ceiling Mountable


This heater can be suspended by chains, cables or other fixings (included).

Wall Mountable Wall Mountable
Wall Mountable

Wall Mountable


Designed to be wall mounted with a suitable bracket/fixings included.

Cost per hour Cost per hour
Cost per hour

Cost per hour


Our electric infrared heaters use the latest ECO technology and do not cost the earth to use. They heat outdoor areas far more effectively than gas and emit no carbon into the atmosphere.

This heater only costs
14.4p per hour
to use on its maximum setting.

This heater only costs
14.4p per hour
to use on its maximum setting.

This heater only costs
14.4p per hour
to use on its maximum setting.

0.6kW
0.6kW
0.6kW
28 Day Guarantee
MAXIMUM
14.4
per hour
MAXIMUM
14.4
per hour
MAXIMUM
14.4
per hour
Video

Shadow Crystal 600W Infrared Glass Panel Heater - White

In stock
New
Sale
Sold out
Pre-order
Save £0.00
Code: 905002
Our price:
from £322.80 inc. VAT
from £269.00 + VAT
  • Slimline Infrared Heat Panel
  • More infrared heat due to 180℃ surface temperature
  • Suitable for use in zone 2 in bathrooms (IP54 rating)
  • Wall, hanging or ceiling mounted options available
  • Can be fitted with a Thermostat temperature control but is not included
BUY 3+
5% OFF
£255.55+
VAT each

Save £13.45 each
BUY 5+
10% OFF
£242.10+
VAT each

Save £26.90 each
BUY 10+
12.5% OFF
£235.38+
VAT each

Save £33.62 each
BUY 3+
5% OFF
£255.55+
VAT each

Save £13.45 each
BUY 5+
10% OFF
£242.10+
VAT each

Save £26.90 each
BUY 10+
12.5% OFF
£235.38+
VAT each

Save £33.62 each
BUY 3+
5% OFF
£274.55+
VAT each

Save £14.45 each
BUY 5+
10% OFF
£260.10+
VAT each

Save £28.90 each
BUY 10+
12.5% OFF
£252.88+
VAT each

Save £36.12 each
  • Slimline Infrared Heat Panel
  • More infrared heat due to 180℃ surface temperature
  • Suitable for use in zone 2 in bathrooms (IP54 rating)
  • Wall, hanging or ceiling mounted options available
  • Can be fitted with a Thermostat temperature control but is not included
Video
Delivery
Returns
2 Year Warranty
Delivery
Flexible delivery options include free standard delivery for orders over £100 or guaranteed next day delivery for a £10 charge.
Full delivery details
Returns
Enjoy our no quibble 28 day returns policy, and shop with confidence.
Read returns policy
2 Year Warranty
1st year parts and labour
2nd year parts only

Description
Manuals & Tech Spec
Description

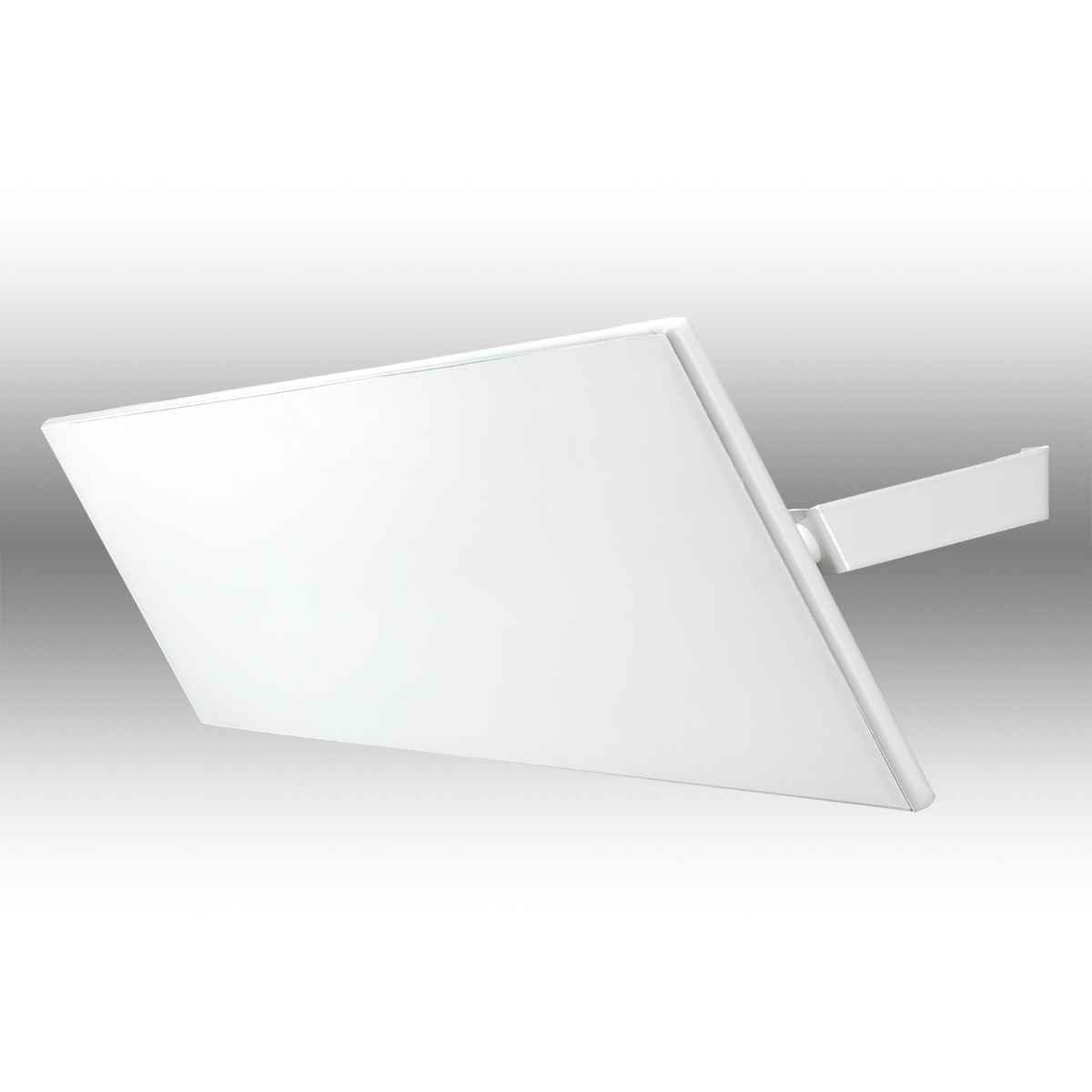

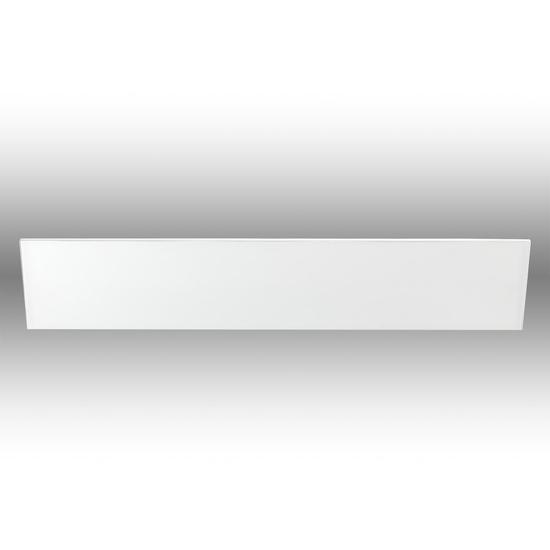

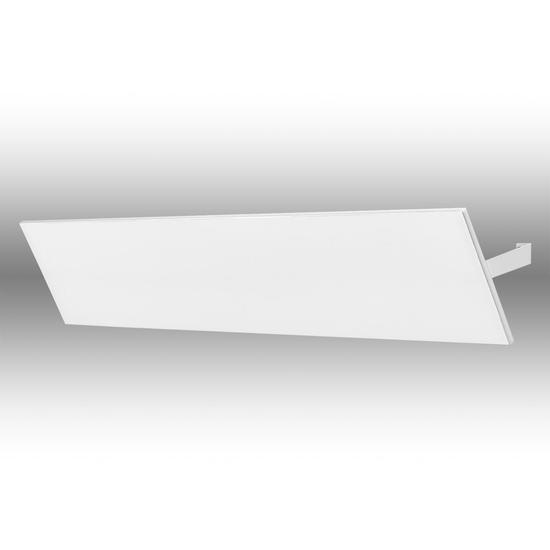

Install the Shadow Crystal infrared panel heaters on the ceiling or on the wall. The heating side of the panel heats up to 180 °C, evenly radiating heat rays and heating up the surrounding surfaces which then use the accumulated heat to warm up the air.

This heating method has many advantages over the other types, such as increased area for heat transfer, occurrence of rotating columns of dust limited to a minimum, generally slower cooling of the room, minimum heating of air under the ceiling or significantly reduced drying of air. All these features in turn contribute to the conservation of electricity, thus ranking infra-red heating among the most convenient and at the same time energy efficient methods of modern heating.

Heating by means of infra-red radiation is highly effective and reasonably economical. It is currently considered to be the most effective type of heating. Heat transfer by means of infra-red rays causes that 93% of the radiated heat is absorbed by the floor, walls and objects in the room, which then warm up the surrounding air.

Coverage areas

Model number Model name Current (A) Dimensions (mm) Coverage* (sqm)
905001 Shadow Crystal Infrared Glass Panel Heater - White 400W 1.7 930 x 130 x 10 6
905002 Shadow Crystal Infrared Glass Panel Heater - White 600W 2.6 930 x 190 x 10 9
905003 Shadow Crystal Infrared Glass Panel Heater - White 800W 3.5 930 x 240 x 10 12
905004 Shadow Crystal Infrared Glass Panel Heater - White 1000W 4.3 930 x 305 x 10 15

*Coverage areas are the maximum recommended but are subjective as different people feel warm at different levels of heat. They also depend upon many factors including the mounting height, ceiling height, airflow and the room insulation efficiency.

Minimum Installation Distances - Wall Mounted option

Shadow Crystal wall mounting distances

Minimum recommended distances

A Minimum ceiling mounting distance - 80mm

B Distance from the wall - 50mm

C Distance from other objects - 500mm

D Minimum distance from the floor - 1800mm

Shadow Crystal in apartment

Minimum Installation Distances - Ceiling Mounted option

Shadow Crystal ceiling mounting distances

Minimum recommended distances

A Minimum ceiling mounting distance - 100mm

B Distance from the wall - 50mm

C Distance from other objects - 500mm

D Minimum distance from the floor - 2200mm

Shadow Crystal ceiling mounting in loft conversion
Manuals & Tech Spec

Shadow Crystal 600W - Wall Mounted

Shadow Crystal Manual

Technical Specification

  Shadow Crystal 600W - Wall Mounted
#905002
Shadow Crystal 600W - Ceiling Mounted
#905002C
Shadow Crystal 600W - Ceiling Hanging
#905002H
Voltage (V) 220-240 220-240 220-240
Weight (Kg) 3.4 3.4 3.4
Total Power (kW) 0.6 0.6 0.6
Ingress Protection IP54 IP54 IP54
Warranty 3 Years 3 Years 3 Years
Cable Length 500mm 500mm 500mm
Additional Info Wall brackets to enable 45 ° angle. Ceiling brackets to enable horizontal fastening. Ceiling brackets and wires for hanging.
Product Depth (cm) 1 1 1
Product Height (cm) 19 19 19
Product Width (cm) 93 93 93
