This item is designed to be fitted and operated outside.
This product is IPx4 – Splashproof
Designed to be wall mounted with a suitable bracket/fixings included.
Our electric infrared heaters use the latest ECO technology and do not cost the earth to use. They heat outdoor areas far more effectively than gas and emit no carbon into the atmosphere.
This heater only costs
9.6p per hour
to use on its maximum setting.

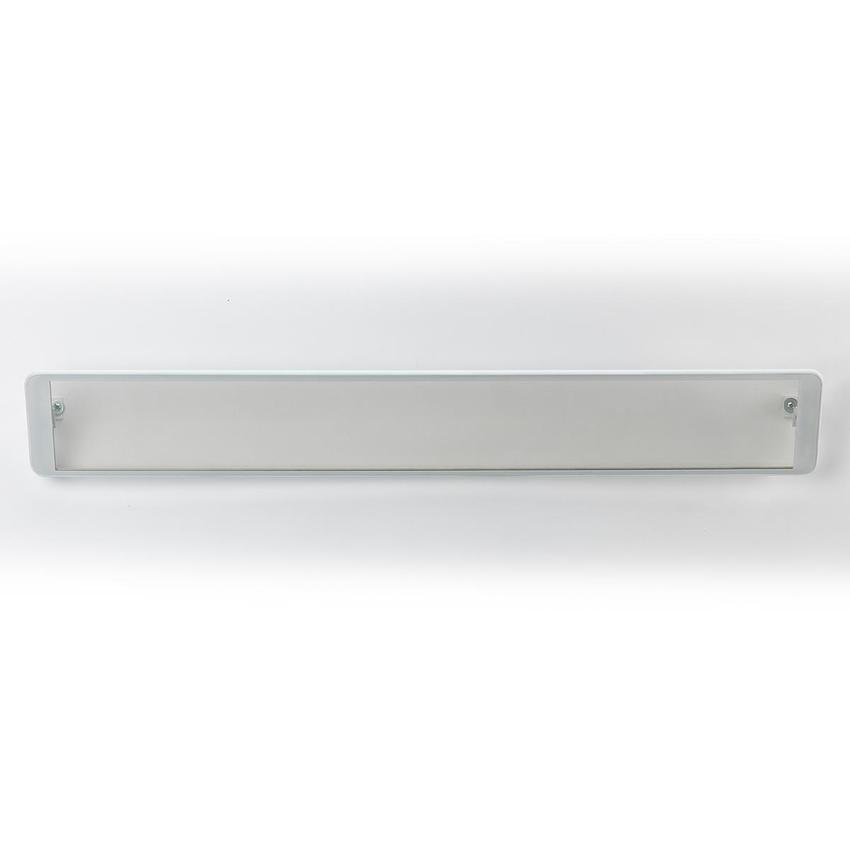

Install the Shadow Crystal infrared panel heaters on the wall. The heating side of the panel heats up to 180 °C, evenly radiating heat rays and heating up the surrounding surfaces which then use the accumulated heat to warm up the air.
This heating method has many advantages over the other types, such as increased area for heat transfer, occurrence of rotating columns of dust limited to a minimum, generally slower cooling of the room, minimum heating of air under the ceiling or significantly reduced drying of air. All these features in turn contribute to the conservation of electricity, thus ranking infra-red heating among the most convenient and at the same time energy efficient methods of modern heating.
Heating by means of infra-red radiation is highly effective and reasonably economical. It is currently considered to be the most effective type of heating. Heat transfer by means of infra-red rays causes that 93% of the radiated heat is absorbed by the floor, walls and objects in the room, which then warm up the surrounding air.
| Model number | Model name | Current (A) | Dimensions (mm) | Coverage* (sqm) |
| 905101 | Shadow Crystal Infrared Glass Panel Heater - Clear Glass 400W | 1.7 | 930 x 130 x 10 | 6 |
| 905102 | Shadow Crystal Infrared Glass Panel Heater - Clear Glass 600W | 2.6 | 930 x 190 x 10 | 9 |
| 905103 | Shadow Crystal Infrared Glass Panel Heater - Clear Glass 800W | 3.5 | 930 x 240 x 10 | 12 |
| 905104 | Shadow Crystal Infrared Glass Panel Heater - Clear Glass 1000W | 4.3 | 930 x 305 x 10 | 15 |
| 905105 | Shadow Crystal Infrared Glass Panel Heater - Clear Glass 1300W | 5.7 | 930 x 385 x 10 | 19 |
*Coverage areas are the maximum recommended but are subjective as different people feel warm at different levels of heat. They also depend upon many factors including the mounting height, ceiling height, airflow and the room insulation efficiency.
A Minimum ceiling mounting distance - 80mm
B Distance from the wall - 50mm
C Distance from other objects - 500mm
D Minimum distance from the floor - 1800mm
| Voltage (V) | 220-240 |
|---|---|
| Weight (Kg) | 2.5 |
| Total Power (kW) | 0.4 |
| Warranty | 3 Years |
| Cable Length | 500mm |
| Product Depth (cm) | 1 |
| Product Height (cm) | 13 |
| Product Width (cm) | 93 |
